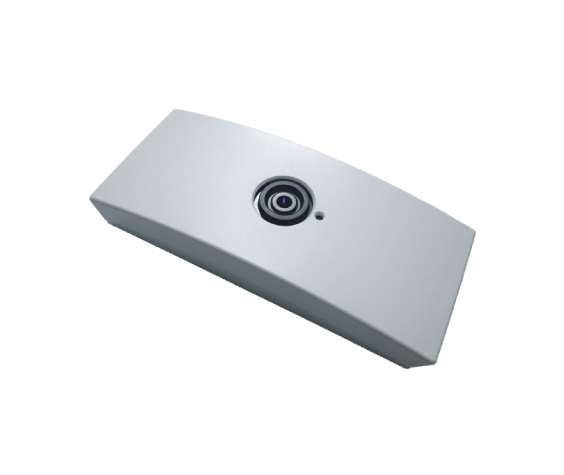

Giken Trastem VC-1020 with POE

Giken Trastem VC-1020 with POE


High speed accurate people counting


VC-1020 with POE, Simply, quickly and accurately count the number of people that visit your building, facility or event, using the ‘people count’ sensor ‘AIO VC-1020 by Giken’. The AIO VC-1020 is more than 95% accurate, and thus is one of the most reliable ‘people count’ sensors on the market: even during busy times.

  • Provides automatic traffic counts of people entering stores and facilities(IN/OUT Bi-Directional & Multiple Counts)
  • Accurately tracks complicated movements (people standing still, turning back, crowds)
  • Sensor processes counts, stores and transfers data
  • Simple Web-based setup interface
  • Video Streaming
  • Data Delivery via FTP/FTPS




Model VC-1020
Exterior dimensions  85mm H x 193mm W x 34mm D
Sensor components  Camera with processor
Operating environment  Indoor use
Color variation  White
Installation position  Ceiling exposed mount
Installation height  Standard: 2.3m to 4.5m (7.5ft to 14.8ft)
High: 4.0m to 6.0m (13.1ft to 19.7ft)
Image sensor  CMOS image sensor color 60 x 480 pixel
Accurate telling  Over 95%
Illuminance  Over 100Lux
Supply power voltage  DC 48V (PoE: IEEE802.3af Class 0)/DC24V (DCJack)
Electricity consumption  Max 7W
Operating temperature  0°C to 50°C, 32°F to 122°F
Operating humidity   30 - 85% Non-condensing
Led indicator  Power, counting and error
External terminals  RJ45 connector and DC Jack
Count data delivery  Push: FTP, SFTP, FTPS. Pull: TCP/IP
Video image output   H.264/MPEG4 (VGA/QVGA 30/15/10fps)
Still image output  JPEG (QVGA)
Maximum wiring length   100m (109.4 yards)
IP rating  IP32
Weight  Approx. 220g, 7.76oz
Materials  ABS/PC UL94 V-O
Recorded data  Stores 30 days of data (1 min. increment)
Setup tool  Web based settings (IE)
Certifications  CE ClassA, FCC ClassA, C-Tick
Coverage area  1.8m W (at 2.3m H) (7.5ft.) 4.5m W (at 3m to 4.2m H) (9.8ft. to 13.8ft.) *Approx. 4m W (at 6m H) (19.7ft.)
Counting  IN/OUT/multiple directions, leave out shadows and shopping carts
Counting area patterns  8 count patterns/multiple count lines (4 lines 8 directions)
